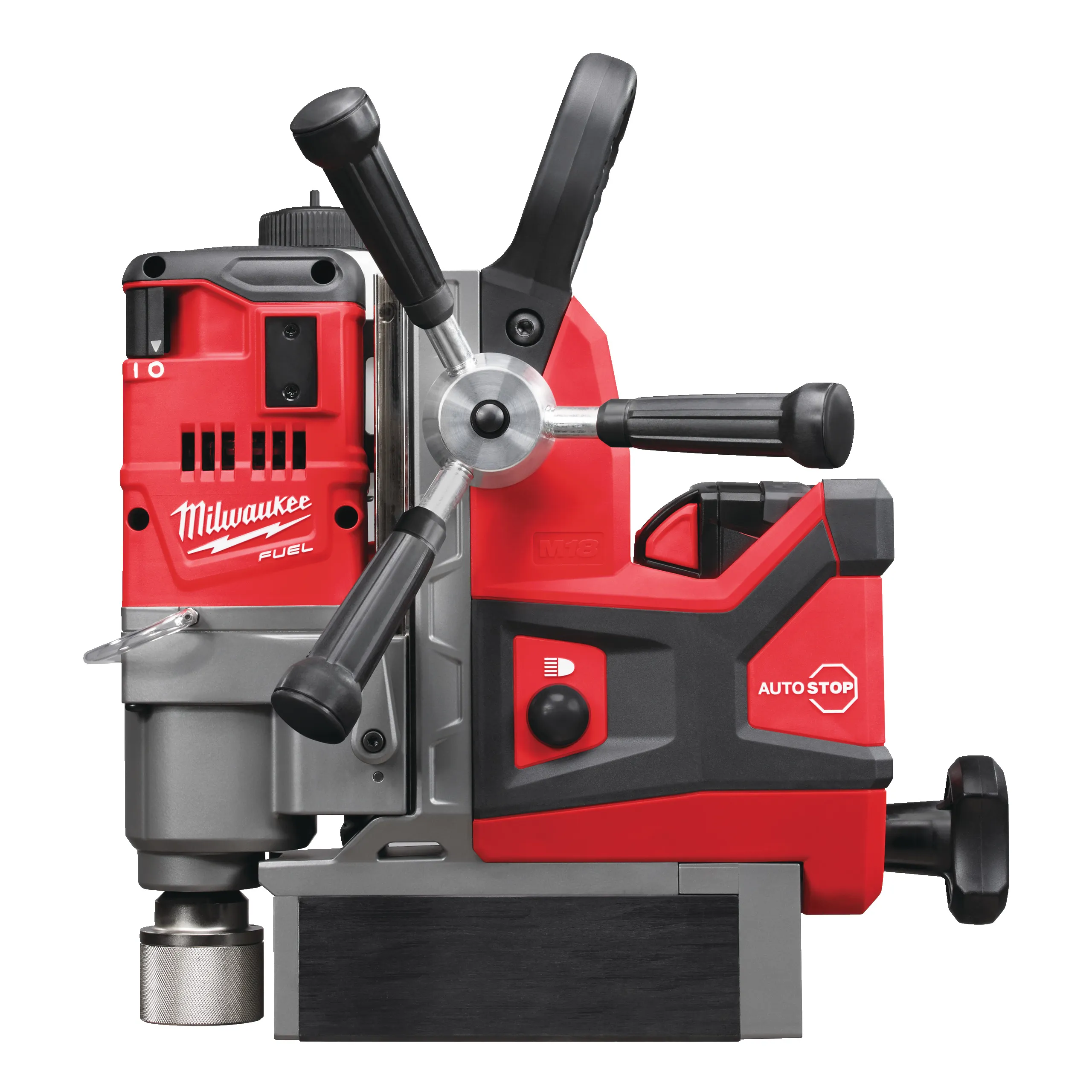

M18 FMDP-502C - Milwaukee M18 FUEL magnetic drilling press with permanent magnet
€1320.00 ex vat
€1623.60 inc vat
Qty:
Free delivery on orders over €100 to Island of Ireland *
Next day delivery to Island of Ireland
On orders placed before 12pm
DESCRIPTION
SPECIFICATION
DOWNLOADS
DELIVERY
M18 FMDP-502C - Milwaukee M18 FUEL magnetic drilling press with permanent magnet
- FUEL™ technology provides corded drilling performance with strongest magnet holding force on ¼″ steel and 40 x 18 mm holes per battery charge

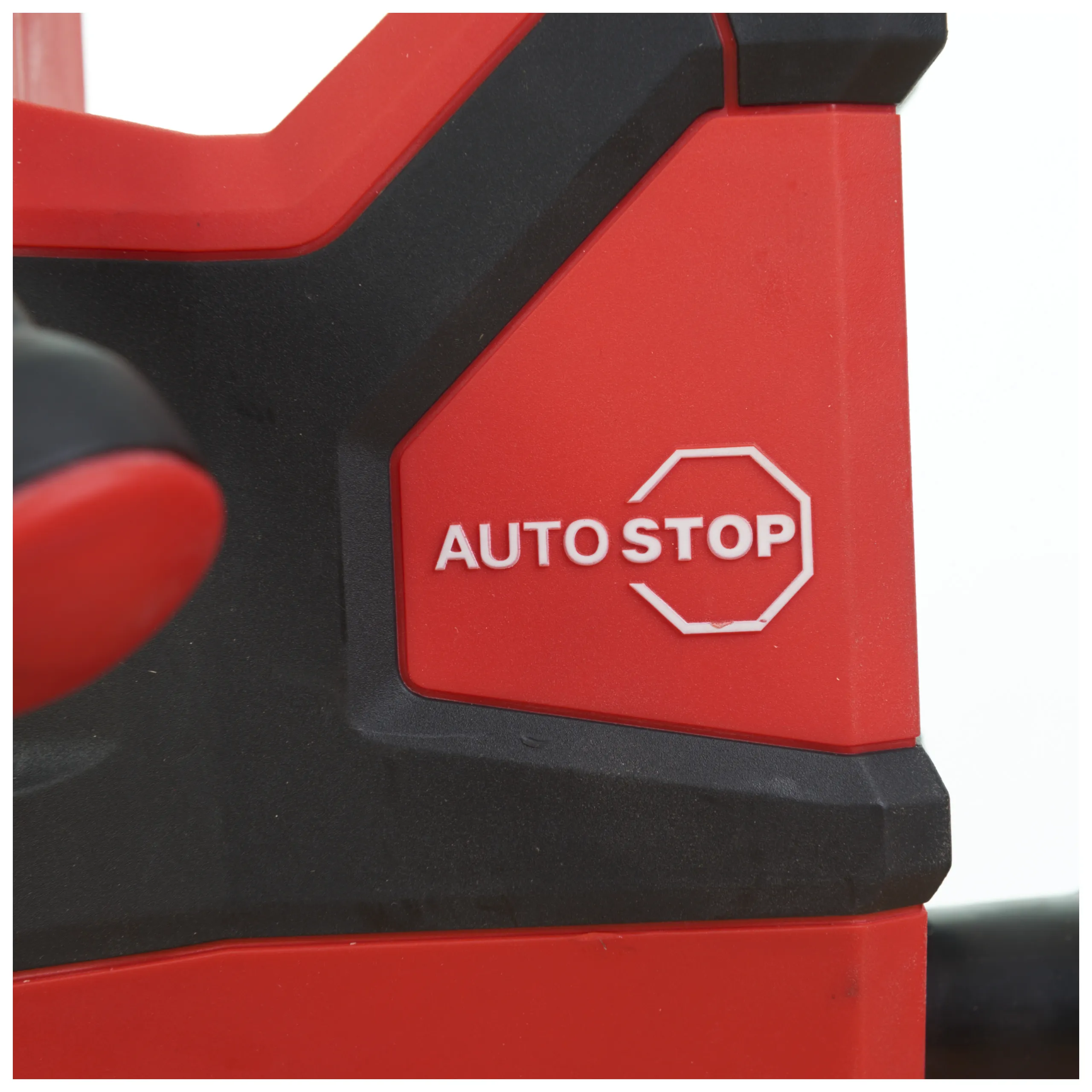

- AUTOSTOP™ lift-off detection: Detects excess rotation and automatically cuts power to the drill for best user protection

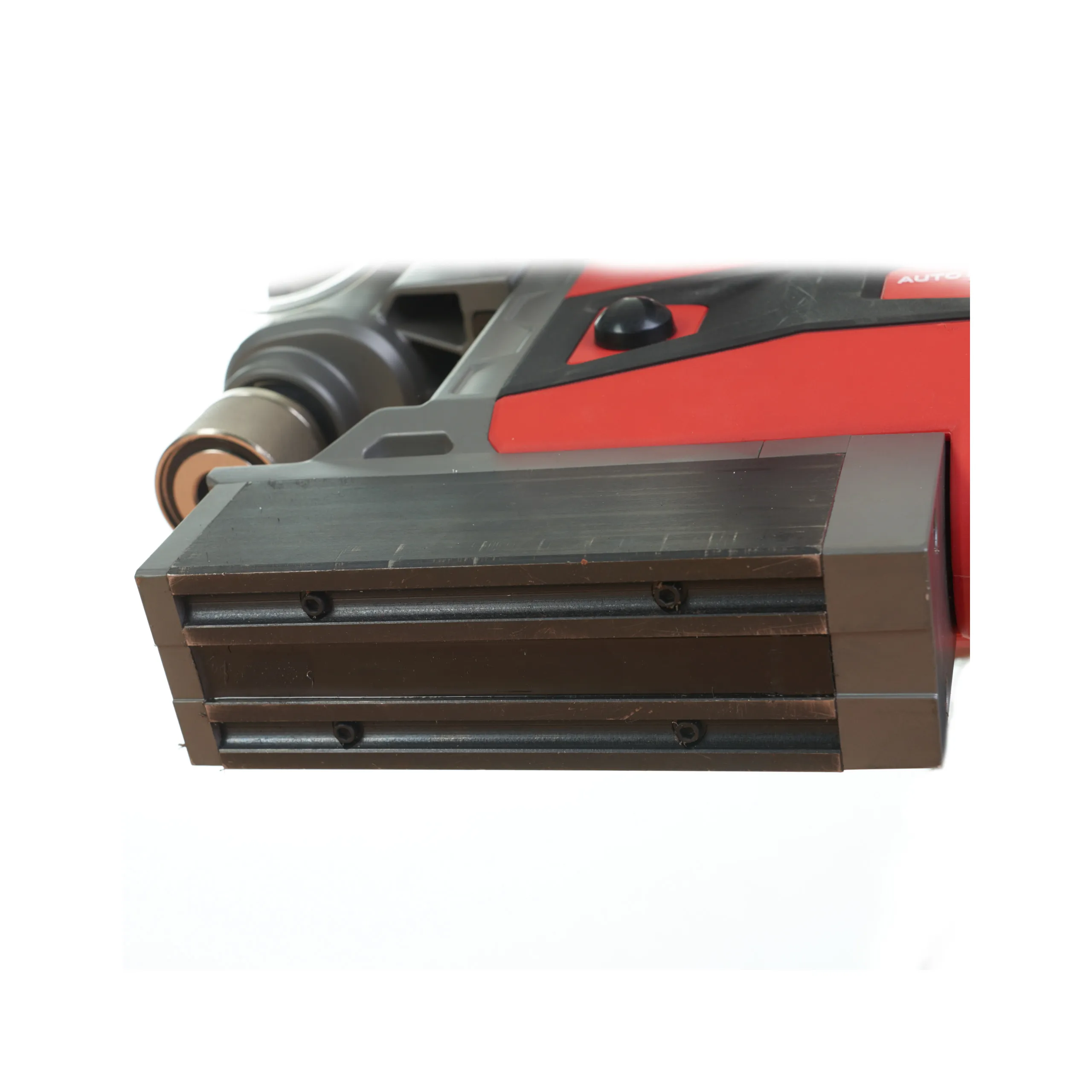

- Self-powered permanent magnet with 8,890 N of holding force prevents accidental magnet deactivation for improved user protection and easy alignment
- 2 speed gear box for optimised drilling speed with 400 and 690 rpm´s when using annual cutters or twist drill bits
- Maximum drilling capacity of 38 mm with use of annual cutters and 13 mm straight shank twist drill bits

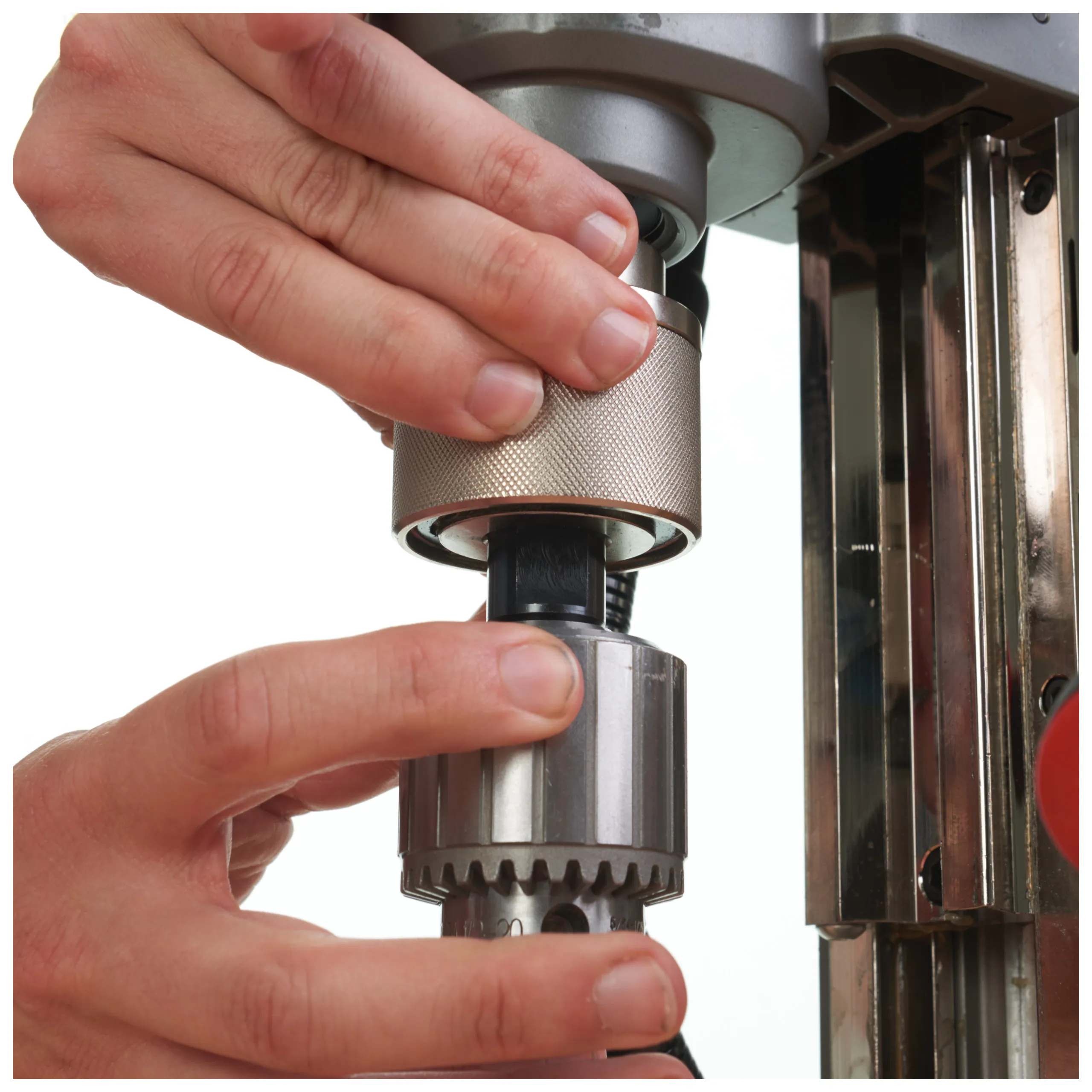

- Keyless 19 mm Weldon reception for fast and easy accessory change

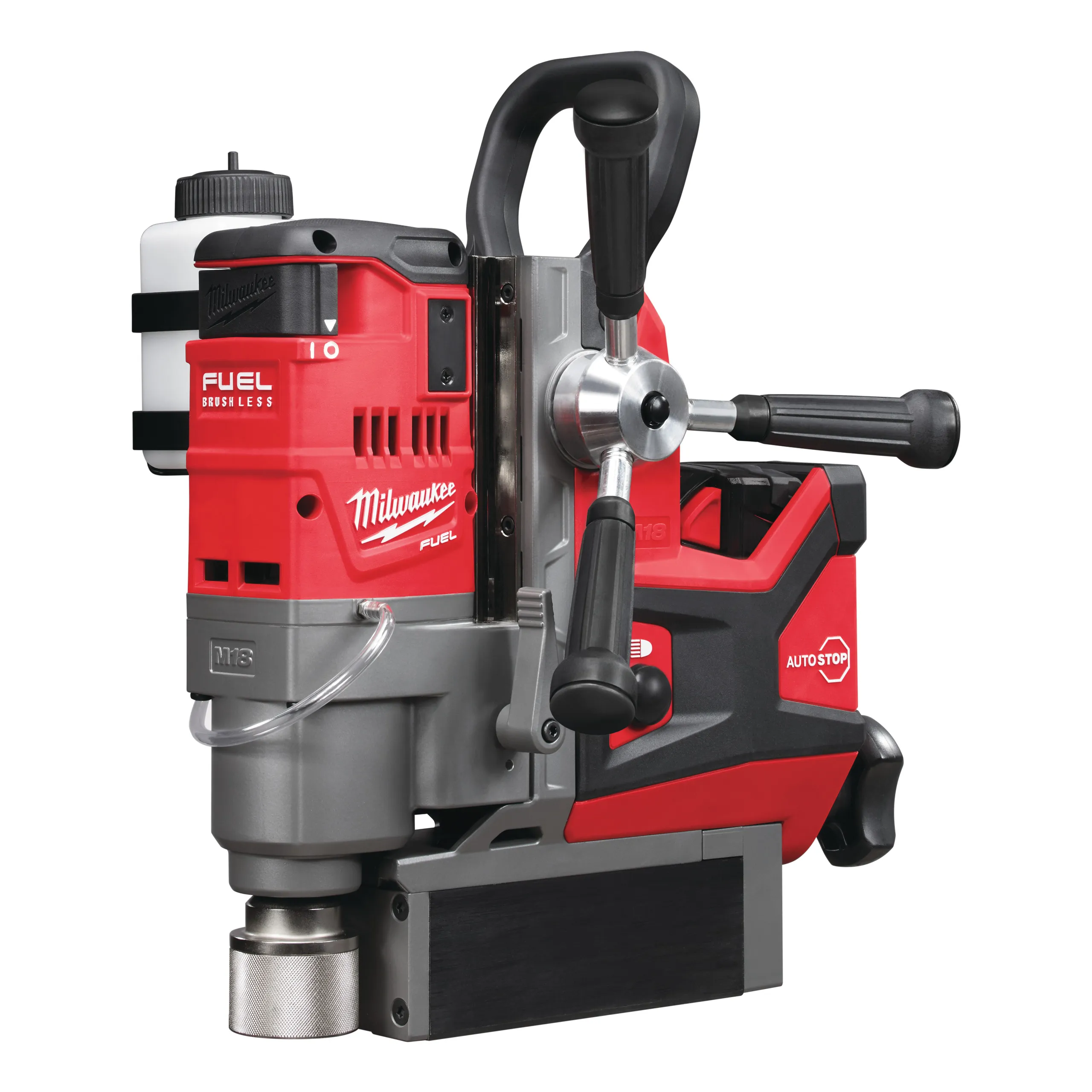

- On board magnet lubrication tank for fixing on the machine or on the material, especially when drilling in vertical positions
- 146 mm stroke length for usage of different accessories
- Tool-free detachable handle for right or left hand usage
- On board LED light to illuminate the work surface
- The DNA of our FUEL™ platform redefines the balance of cordless technologies. MILWAUKEE®'s POWERSTATE™ brushless motor, REDLITHIUM™ battery pack and REDLINK PLUS™ electronic intelligence delivering outstanding power, run time and durability
- Flexible battery system: works with all MILWAUKEE® M18™ batteries
- Kit included : 2 x M18 B5 Battery packs, M12-18 FC Charger, Kitbox
SPECIFICATION: M18 FMDP-502C - Milwaukee M18 FUEL magnetic drilling press with permanent magnet
Parent name
M18 FMDP-502C
Parent product description
M18 FUEL™ mágnestalpas fúróállvány
Battery pack capacity (Ah)
5.0
Battery type
Li-ion
Kit included
2 x M18 B5 Battery packs, M12-18 FC Charger, Kitbox
Magn. holding power (at drill point pressure) (N)
8890
Max. depth broaching capacity (mm)
50
Max. diameter broaching capacity (mm)
38
Max. drilling solid bit (mm)
13
No load speed (rpm)
400 / 690
No. of batteries supplied
2
Sound power level (Lwa)(dB(A))
93.4
Sound power level uncertainty (dB(A))
3
Sound pressure level (Lpa)(dB(A))
82.4
Sound pressure level uncertainty (dB(A))
3
Standard equipment
Lubrication tank with hose, magnetic lubrication tank holder, 13 mm chuck with Weldon adaptor, chuck key, ejector pin, safety strap
Stroke length (mm)
146
Supplied in
Kitbox
Vibration level (m/s²)
1.69
Vibration uncertainty (m/s²)
1.5
Voltage (V)
18
Weight with battery pack (EPTA) (kg)
13.0 (M18 B5)
