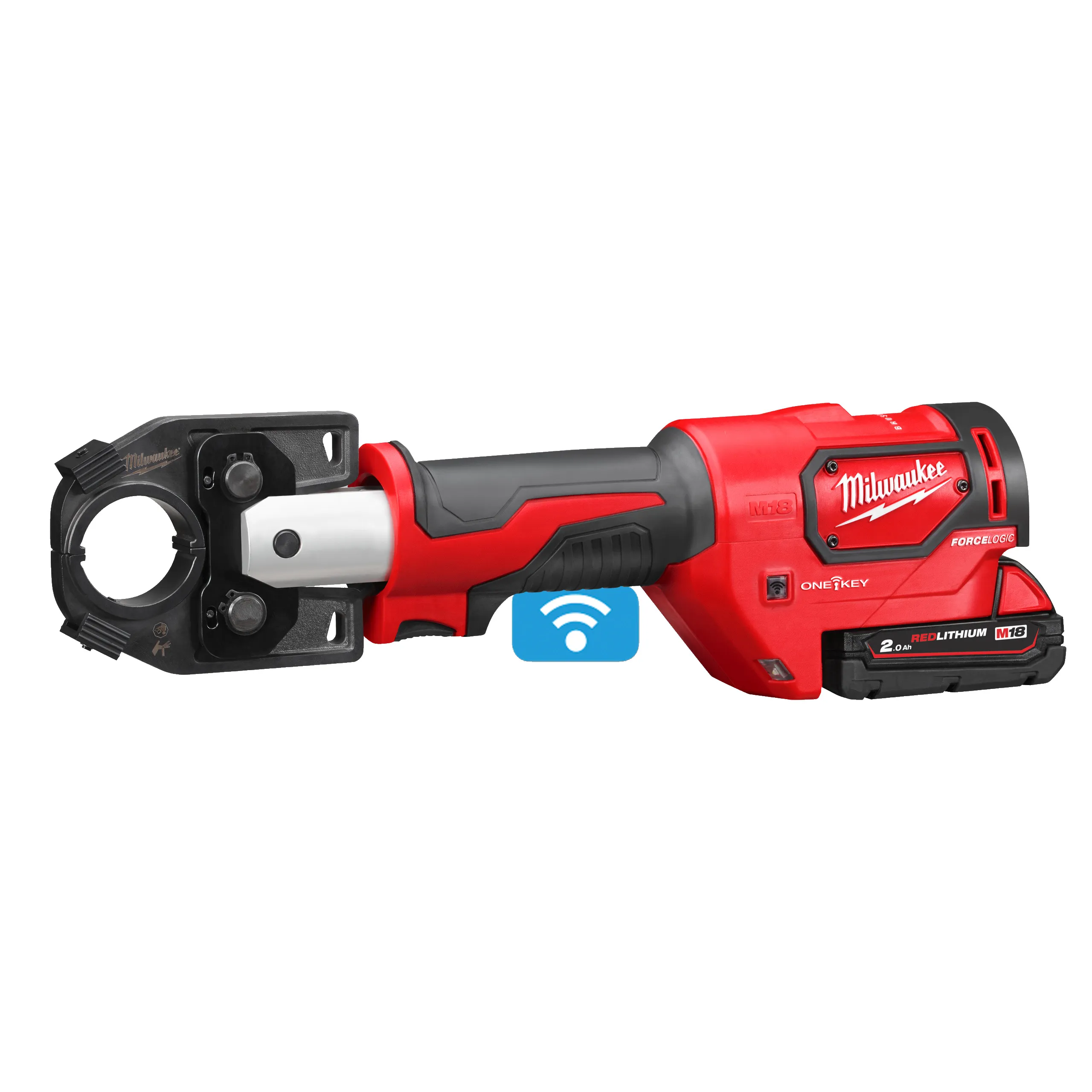

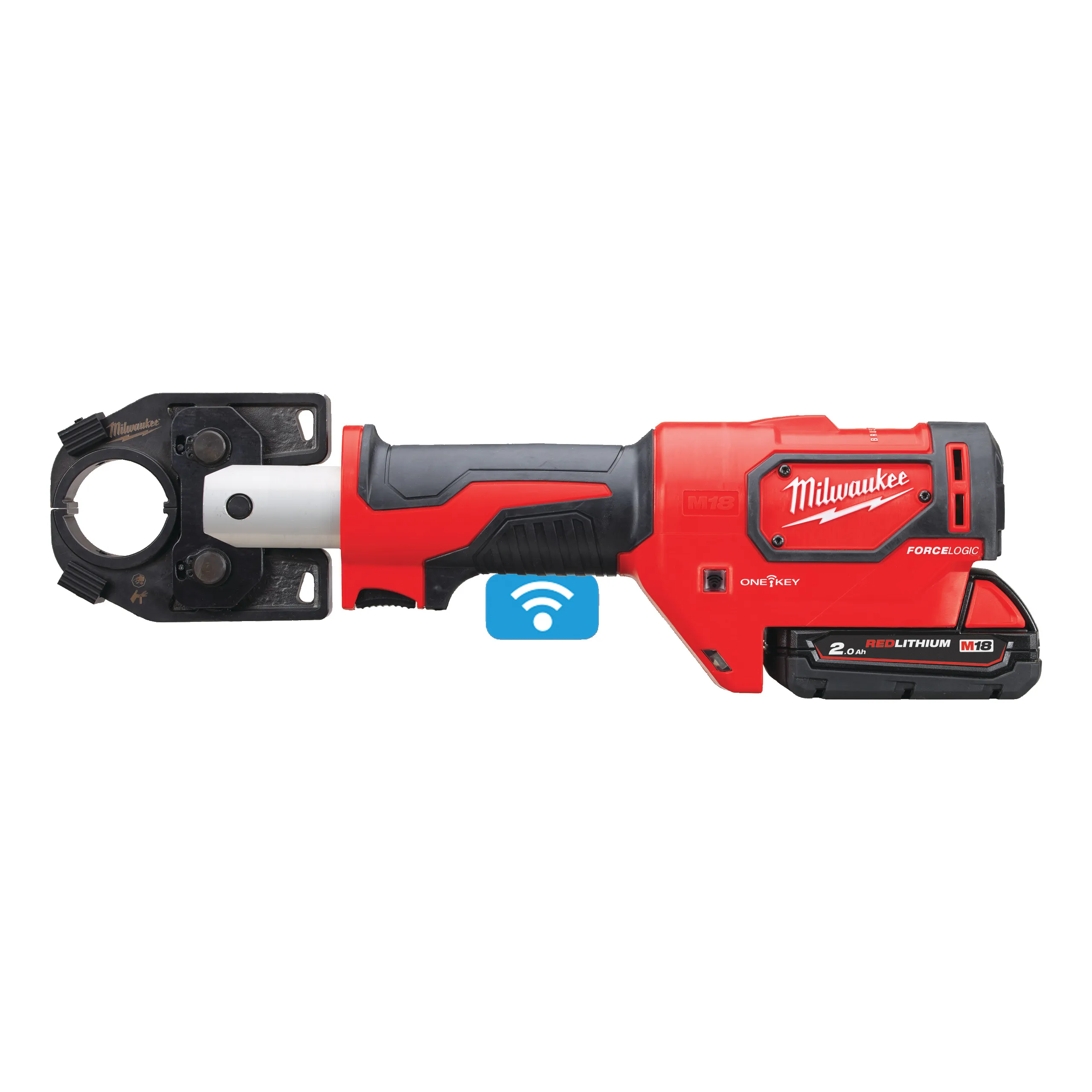

M18 HCCT-201C - Milwaukee M18 FORCE LOGIC hydraulic 53 kN cable crimper

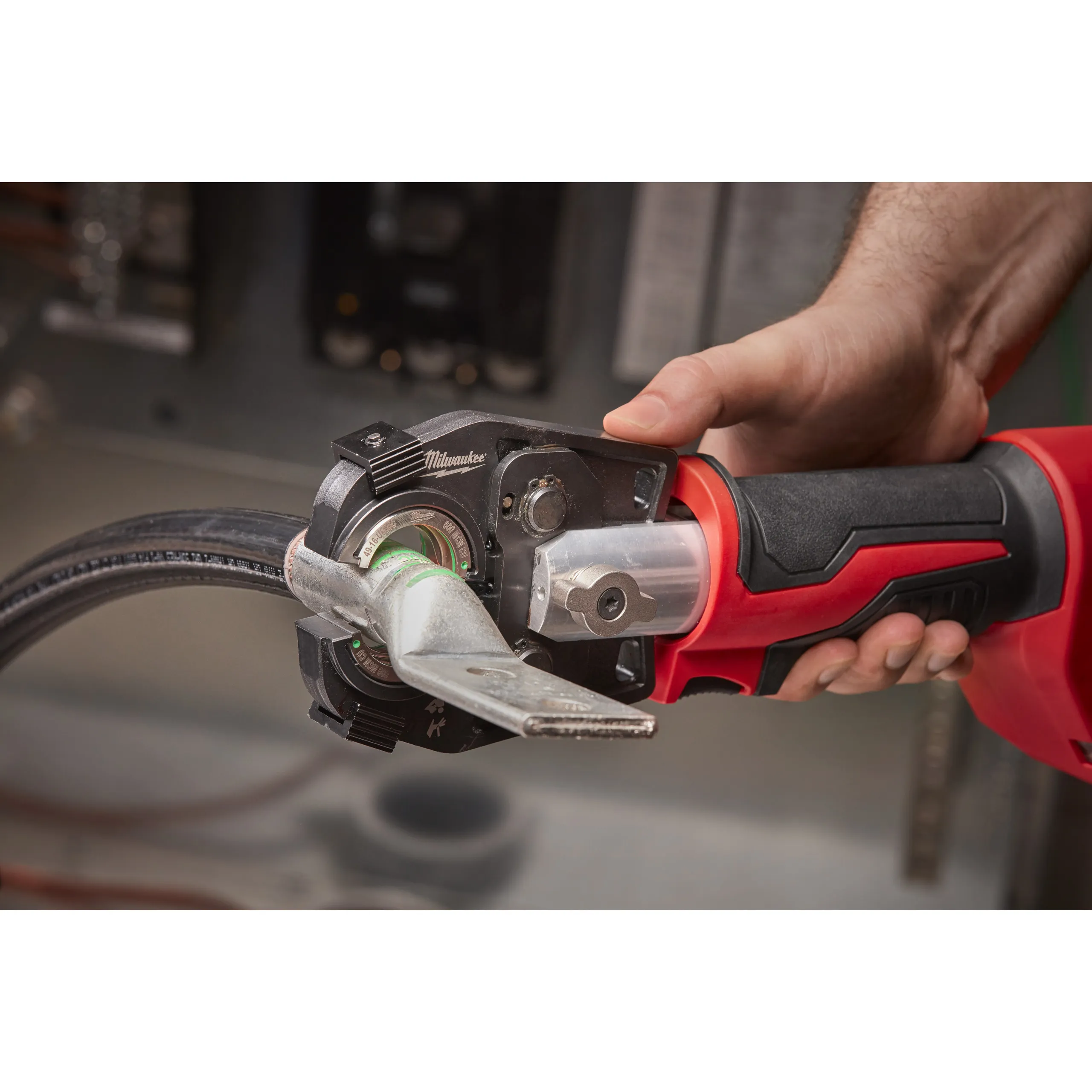

- FORCE LOGIC™ hydraulic cable crimper crimps connectors up to 300 mm² in less than 3 seconds with 53 kN of force
- Revolutionary jaw holds connector for best alignment of cable and connector
- 2 in 1 solution: crimping jaw can be exchanged for an CU/AL cable cutting jaw
- Best balanced tool and easiest control due to one hand operation
- Compact in-line and slim jaw design with 350° rotatable head allows easy crimps, even in narrow spaces
- PFM™ (Predictive Force Monitoring): Automatically modifies output based on connector, ensuring optimal pressure every time and visualises with a green light
- Allows crimping of connectors up to 300 mm²
- Universal die reception to fit most common 60 kN U-Dies (C shaped dies) on the market
- The tool records & stores every crimp made for professional report building through both ONE-KEY™ app and ONE-KEY™ adaptor
- ONE-KEY™ tool tracking & security offers a free of charge cloud-based tracking network and inventory management platform for your tools. ONE-KEY™ also features a remote locking functionality
- Pre-crimp battery check automatically ensures enough charge to complete each crimp
- Sealed electronics resist harsh environments with dirt, dust and moisture
- Brushless motor, REDLITHIUM™ battery pack and REDLINK™ electronic deliver power, run time and durability
- -
- Kit included : 1 x M18 B2 Battery pack, M12-18 C Charger, Kitbox
SPECIFICATION: M18 HCCT-201C - Milwaukee M18 FORCE LOGIC hydraulic 53 kN cable crimper
Parent name
M18 HCCT-201C
Parent product description
M18™ FORCE LOGIC™ hidraulikus kábelkrimpelő 53 kN
Battery pack capacity (Ah)
2.0
Battery type
Li-ion
Crimping force [kN]
53
Crimping range] [mm2
16 - 300
Crimping time [s]
< 3
Crimps per battery
> 250 on a 70 mm² copper connector
Kit included
1 x M18 B2 Battery pack, M12-18 C Charger, Kitbox
No. of batteries supplied
1
Press cycles
30,000
Press force [kN]
53
Sound power level (Lwa)(dB(A))
85.6
Sound power level uncertainty (dB(A))
3
Sound pressure level (Lpa)(dB(A))
74.6
Sound pressure level uncertainty (dB(A))
3
Standard equipment
Crimping jaw
Supplied in
Kitbox
Vibration level (m/s²)
0.77
Vibration uncertainty (m/s²)
1.5
Voltage (V)
18
Weight with battery pack (EPTA) (kg)
3.7 (M18 B2)
